Post by bugz » Thu Oct 16, 2008 3:48 pm

does anyone have any close up pics of there homemade tube chassis?

User avatar
vonclod
Approved Member
Posts: 1001
Joined: Thu Aug 23, 2007 5:46 am
Location: Vancouver B.C. Canada

Re: tube chassis

Post by vonclod » Thu Oct 16, 2008 5:33 pm

i,ll post a few after wrk :D
if freedom of speech is taken away
then dumb and silent we may be led
like sheep to the slaughter

User avatar
bugz
Approved Member
Posts: 24
Joined: Wed Oct 01, 2008 2:13 pm
Location: Albany, New York

Re: tube chassis

Post by bugz » Thu Oct 16, 2008 6:06 pm

thanks dude :lol: 8)

User avatar
bugz
Approved Member
Posts: 24
Joined: Wed Oct 01, 2008 2:13 pm
Location: Albany, New York

Re: tube chassis

Post by bugz » Thu Oct 16, 2008 6:10 pm

1/4 brass tubing is just soldered together? will it be strong????

User avatar
vonclod
Approved Member
Posts: 1001
Joined: Thu Aug 23, 2007 5:46 am
Location: Vancouver B.C. Canada

Re: tube chassis

Post by vonclod » Fri Oct 17, 2008 2:06 am

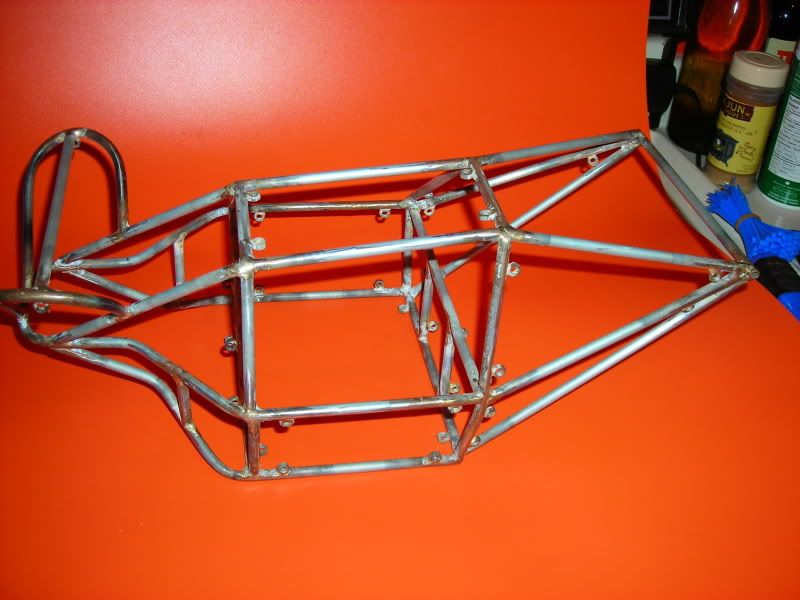

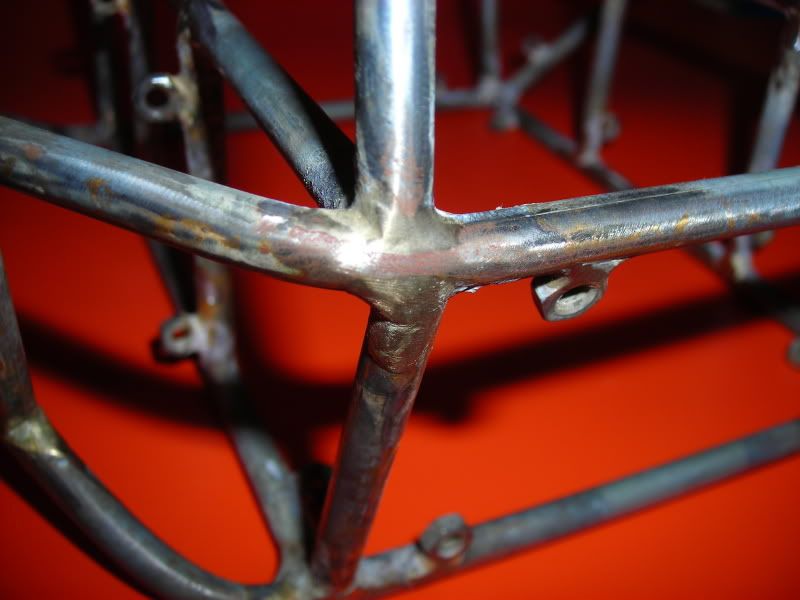

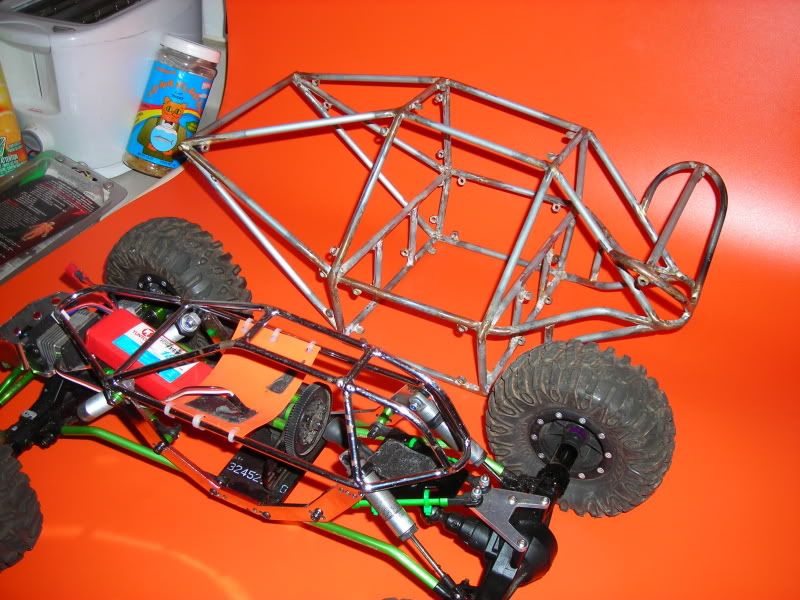

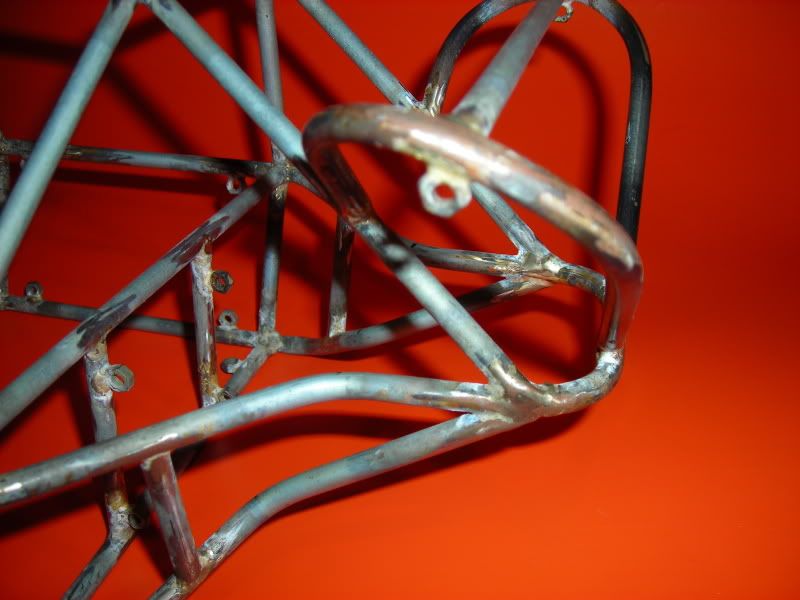

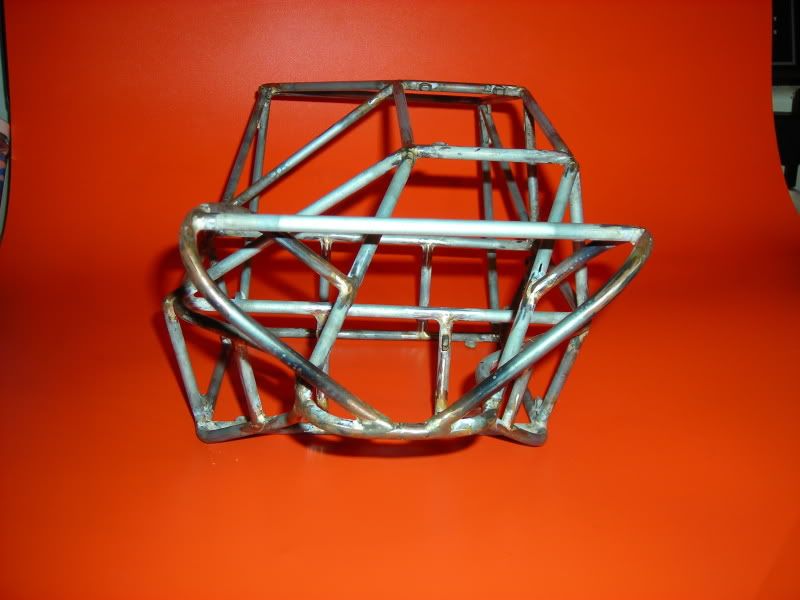

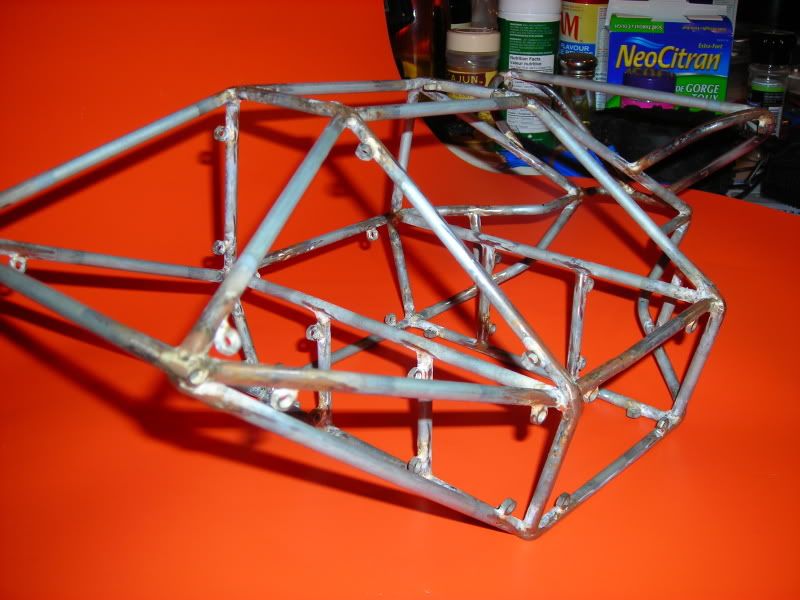

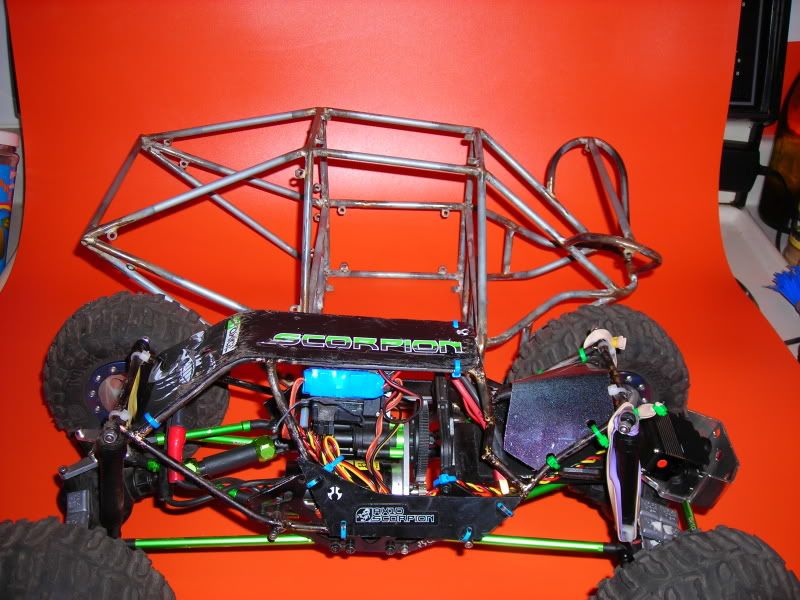

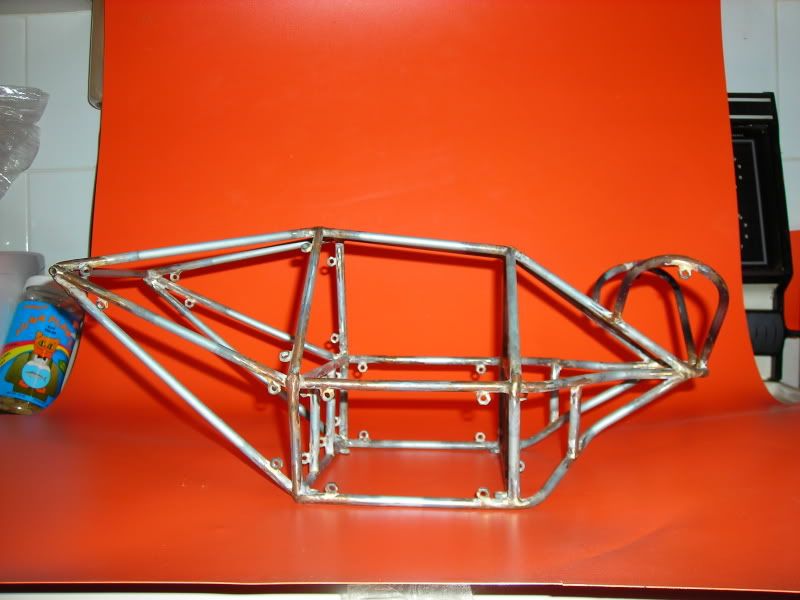

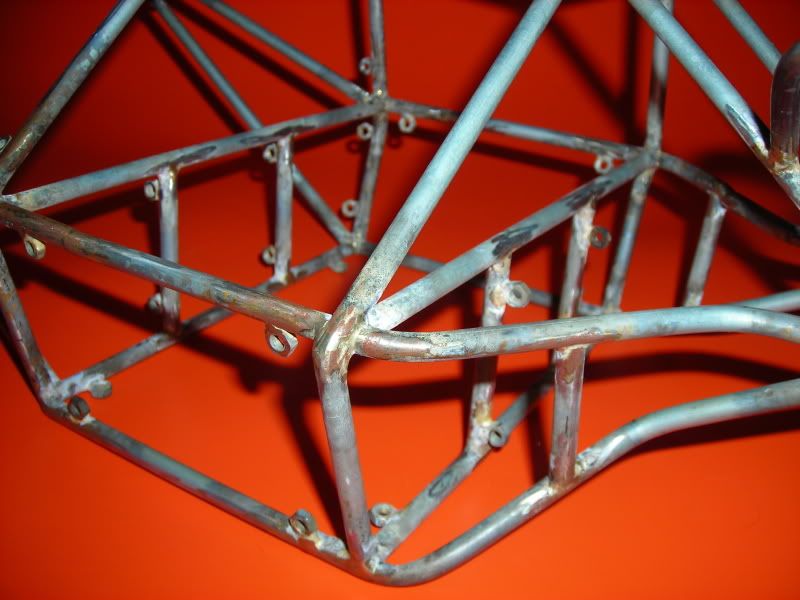

heres a few of my next clod project..the chassis is based on a cambell moonbuggy..i will say off the bat ,i didnt make this it was made for me by a fellow canuk crawler :D its made of 1/4" brake line and is plenty strong..if you want a strong joint in brazing you definatly want to fishmouth the joints..the better the fit before brazing the stronger it will be..also engineering is a big part of it..adding a brace where needed and useing triangulation to make it strong and light. in 1 pic there is my 2.2 comp rig for size comparison. cheers
this chassis will be used in my 4mtr jps clod :twisted: off to get green apple sparkle powercoat this week :D
if freedom of speech is taken away
then dumb and silent we may be led
like sheep to the slaughter

User avatar
charliechristmas58
Approved Member
Posts: 7037
Joined: Sun Sep 17, 2006 11:12 pm
Location: Angleton Texas

Re: tube chassis

Post by charliechristmas58 » Fri Oct 17, 2008 2:22 am

WHAT. No Stove pics. :(
Life is not a journey to the grave with the intention of arriving safely in a pretty and well preserved body, but rather to skid in broadside, thoroughly used up, totally worn out, and loudly proclaiming to the Lord,
"Wow, What a ride!"

User avatar
vonclod
Approved Member
Posts: 1001
Joined: Thu Aug 23, 2007 5:46 am
Location: Vancouver B.C. Canada

Re: tube chassis

Post by vonclod » Fri Oct 17, 2008 2:42 am

yes im getting experimental..lol in my pics the stove is still there under the sheet ofplastic..the chassis actually stands out much better against the dayglo orange..lol :roll: have no fear my friends the stove will be featured again soon..now about that clodtalk apron :D :D
if freedom of speech is taken away
then dumb and silent we may be led
like sheep to the slaughter

User avatar
bugz
Approved Member
Posts: 24
Joined: Wed Oct 01, 2008 2:13 pm
Location: Albany, New York

Re: tube chassis

Post by bugz » Fri Oct 17, 2008 7:04 pm

is that brakeline?

User avatar
vonclod
Approved Member
Posts: 1001
Joined: Thu Aug 23, 2007 5:46 am
Location: Vancouver B.C. Canada

Re: tube chassis

Post by vonclod » Sat Oct 18, 2008 12:21 am

yes it is :D
if freedom of speech is taken away
then dumb and silent we may be led
like sheep to the slaughter

User avatar
Halgar
Administrator
Posts: 13991
Joined: Tue Feb 17, 2004 6:03 am

Re: tube chassis

Post by Halgar » Sat Oct 18, 2008 12:43 am

vonclod wrote:yes it is :D
Doesn't look broken to me ... :wink: :P
I used to think I was indecisive, but now I'm not so sure.

User avatar
bugz
Approved Member
Posts: 24
Joined: Wed Oct 01, 2008 2:13 pm
Location: Albany, New York

Re: tube chassis

Post by bugz » Sat Oct 18, 2008 5:18 am

ever use brass tubing? how strong are the soldered joints?

User avatar
vonclod
Approved Member
Posts: 1001
Joined: Thu Aug 23, 2007 5:46 am
Location: Vancouver B.C. Canada

Re: tube chassis

Post by vonclod » Sat Oct 18, 2008 6:36 am

Halgar wrote:
vonclod wrote:yes it is :D
Doesn't look broken to me ... :wink: :P
broken wallet when its all said and done..lol :D

on the brass question i dont really know..i think brass may be a bit softer..i dont really see anyone around here that uses it..im pretty sure it can be done though
if freedom of speech is taken away
then dumb and silent we may be led
like sheep to the slaughter

NCNitro
Approved Member
Posts: 297
Joined: Sat Apr 16, 2005 5:00 pm

Re: tube chassis

Post by NCNitro » Sat Oct 18, 2008 9:54 pm

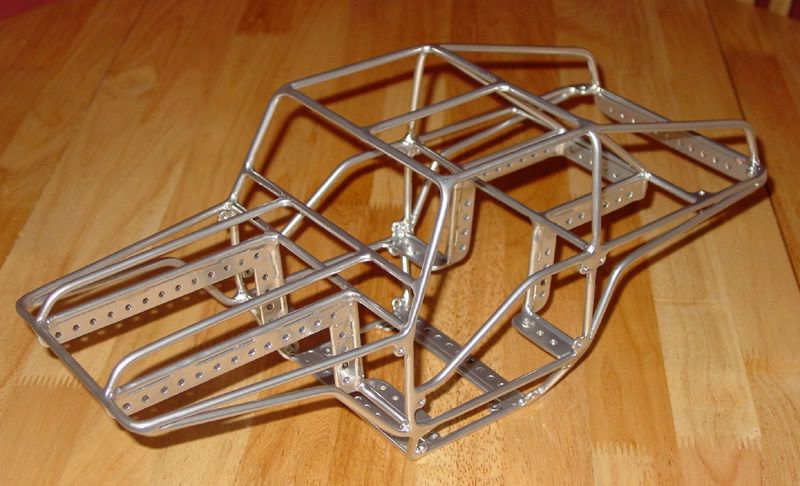

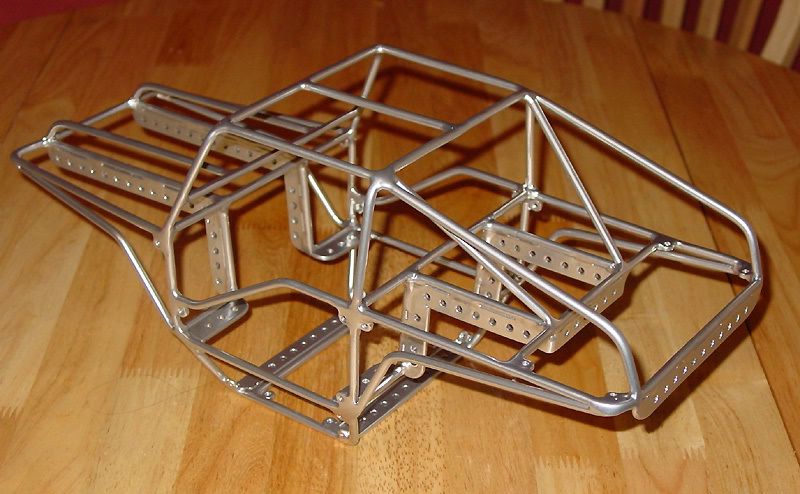

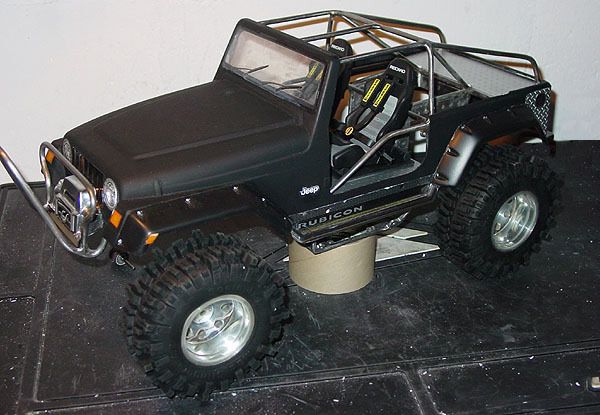

Heres a few pics of the Jeep tuber scale trail truck I have been working on for a while now. It's actually 3/16 cold rolled steel rod mig welded together. I just recently got it back from the powder coating shop. I had it done in a satin silver powder coat, I am very happy with how it came out.





User avatar
vonclod
Approved Member
Posts: 1001
Joined: Thu Aug 23, 2007 5:46 am
Location: Vancouver B.C. Canada

Re: tube chassis

Post by vonclod » Sun Oct 19, 2008 1:20 am

nice job man :D
if freedom of speech is taken away
then dumb and silent we may be led
