Re: 6x6x6 Clod build

Post by Sixtys Guy » Sat Aug 16, 2014 11:00 pm

Cool, thanks for that. I'm really keen to build one of these. I need axles, but I have lots of spares including 2 sets of short 4 links and a set of long. Gathering ideas....!

rknaub
Approved Member
Posts: 140
Joined: Thu Jul 17, 2014 2:51 am

Re: 6x6x6 Clod build

Post by rknaub » Sat Aug 16, 2014 11:19 pm

I may have plenty of links left over. All the little frame stiffeners are just links cut down and tapped for the screws. Might even have a couple axles to spare. Gotta go through my stuff and figure out what I wanna keep.
My flagship 6x6x6 build: viewtopic.php?f=50&t=29626
Peterbuilt crawler build "HellFire": viewtopic.php?f=46&t=29618
Basher build: viewtopic.php?f=46&t=29750

User avatar
Dukk
Approved Member
Posts: 151
Joined: Sat Jan 18, 2014 12:21 am
Location: BC Canada

Re: 6x6x6 Clod build

Post by Dukk » Thu Aug 21, 2014 6:13 pm

An idea for the front body mount (too late now, sorry #-o ) is to do like you did in the back with an angle bracket but put the posts on the body and have them go through holes in the bracket. In your case there are already screws in the licence plate area so I would use those to hold the posts. The body would then go on by sliding it rearward as the front posts go through the bracket and then the rear posts keep the body in place. Wouldn't even really need to use body clips on the front but could probably put them in through the wheel wells or from underneath. Something to keep in mind anyway.

rknaub
Approved Member
Posts: 140
Joined: Thu Jul 17, 2014 2:51 am

Re: 6x6x6 Clod build

Post by rknaub » Fri Aug 22, 2014 3:28 am

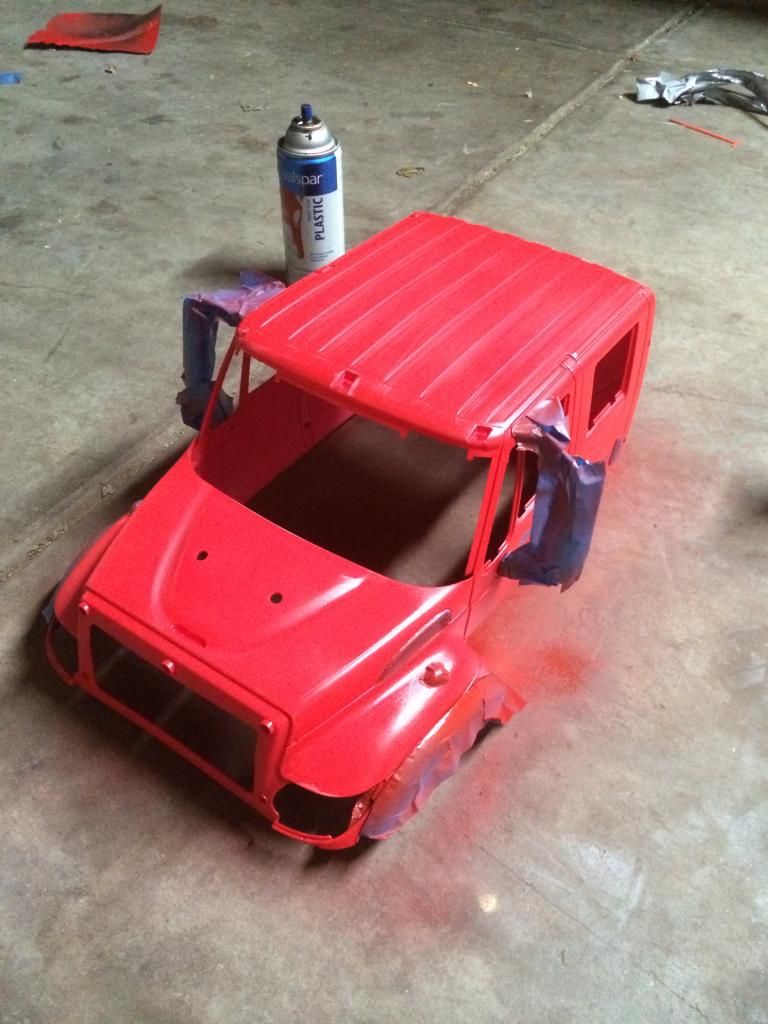

Took some time to paint the body tonight, found the exact same red. My painting skills are terrible, so hopefully it turns out ok.

My flagship 6x6x6 build: viewtopic.php?f=50&t=29626
Peterbuilt crawler build "HellFire": viewtopic.php?f=46&t=29618
Basher build: viewtopic.php?f=46&t=29750

rknaub
Approved Member
Posts: 140
Joined: Thu Jul 17, 2014 2:51 am

Re: 6x6x6 Clod build

Post by rknaub » Sun Aug 24, 2014 8:50 pm

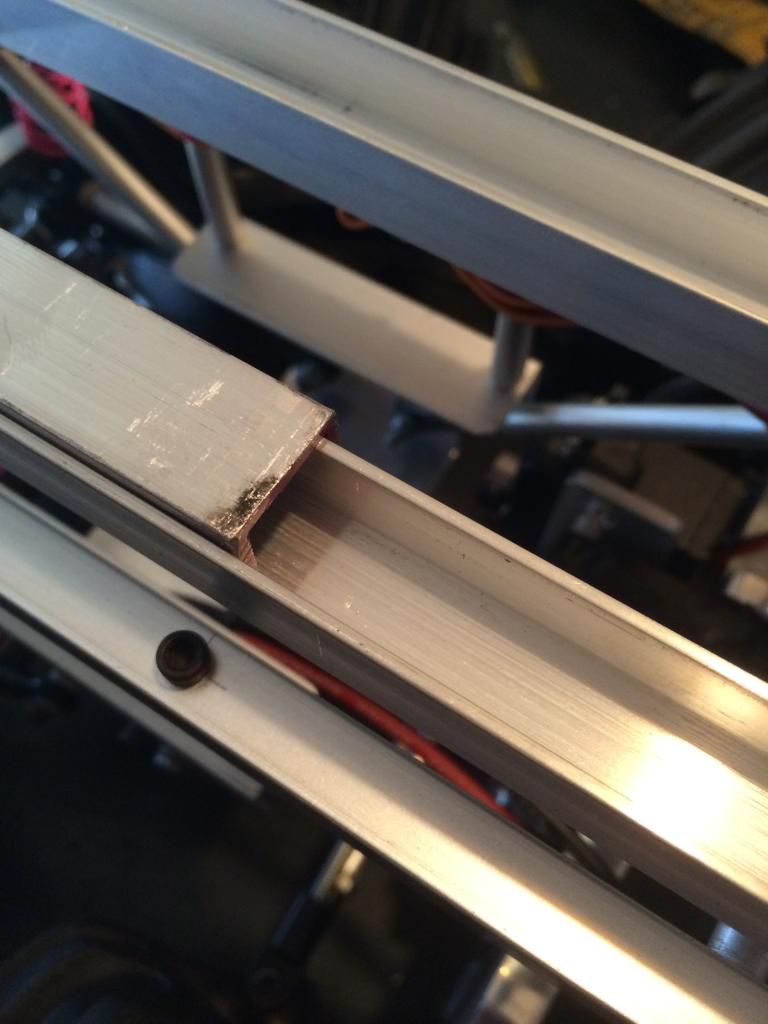

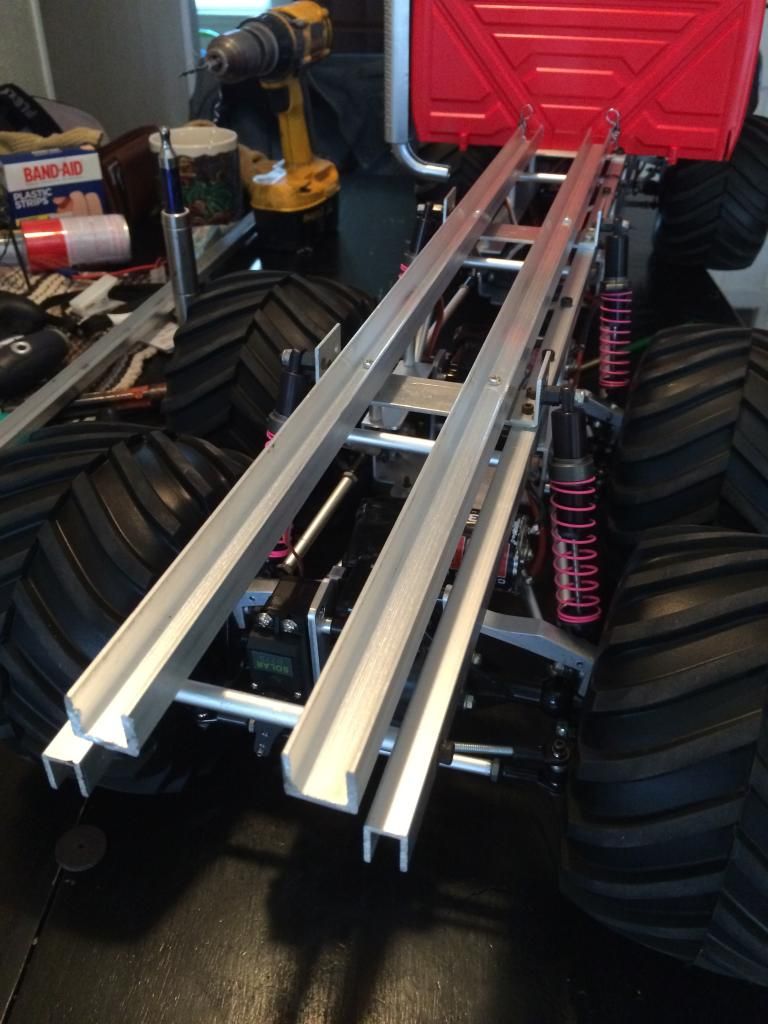

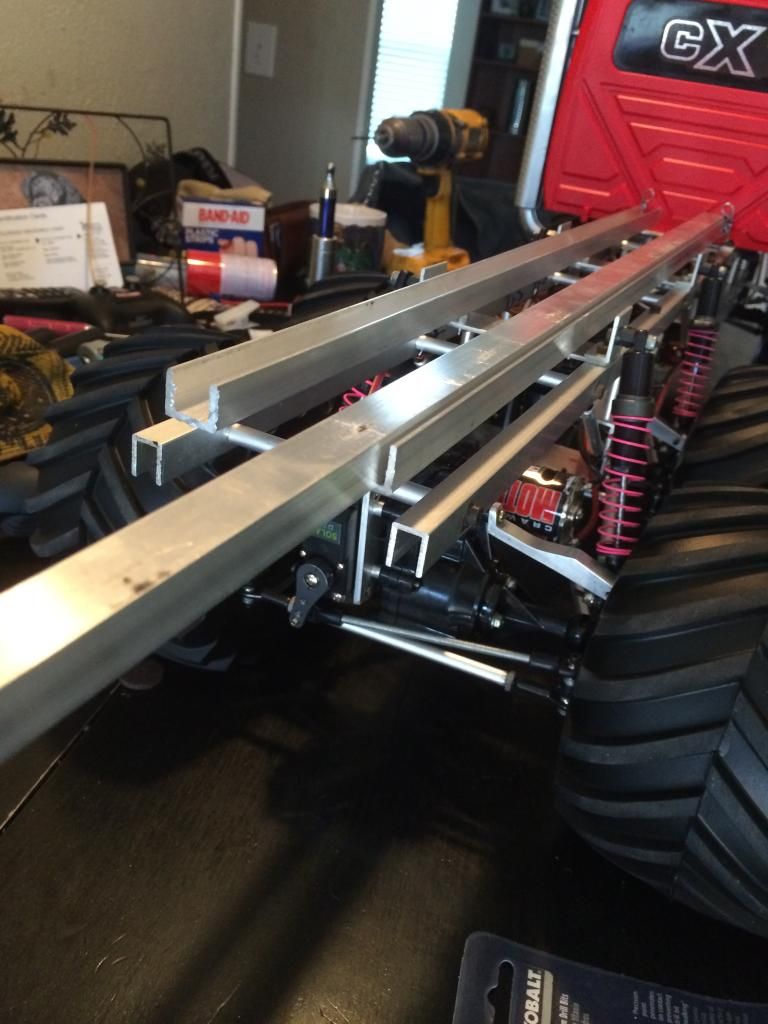

Mocked up a flatbed today using some more aluminum c channel. After a bit of sanding they should slide pretty smoothly.

This is not the material I plan to use for the deck, this is just for a mock up. Gonna use some thicker weld-able steel so I can make some side rails.

I need to find a linear servo with about 10" of travel and I can easily make this work. Saw some plans to hack a regular servo using some threaded rod, may go that route.

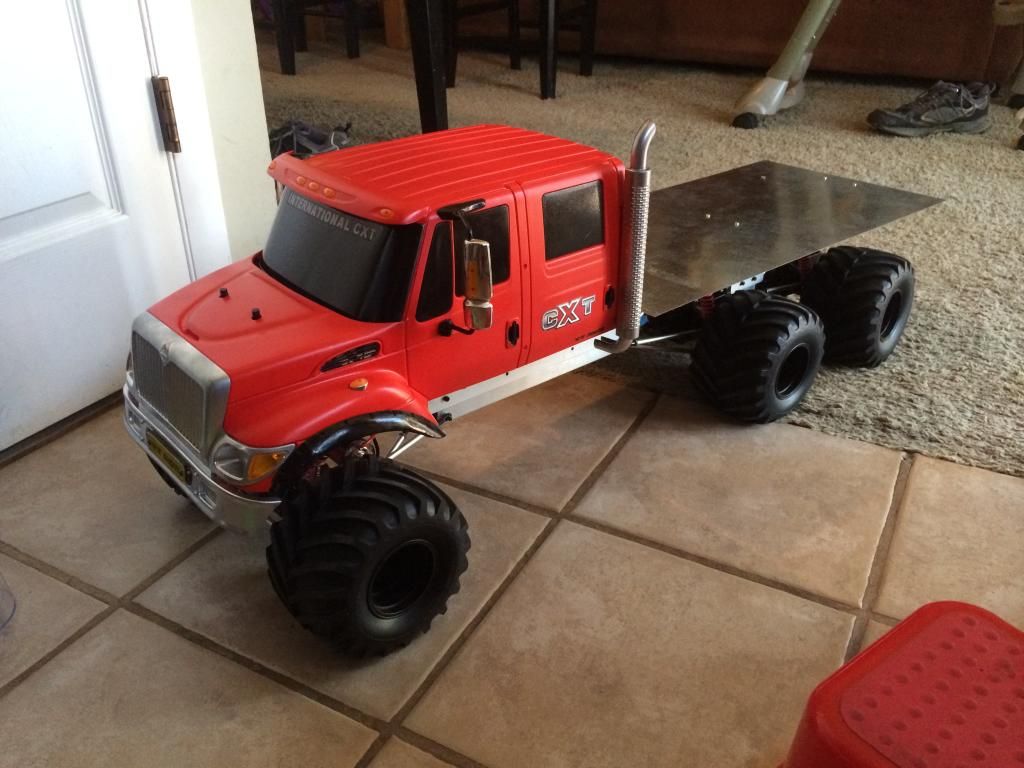

Looks pretty good with the wraith sitting on top!
My flagship 6x6x6 build: viewtopic.php?f=50&t=29626
Peterbuilt crawler build "HellFire": viewtopic.php?f=46&t=29618
Basher build: viewtopic.php?f=46&t=29750

User avatar
Sixtys Guy
Approved Member
Posts: 1531
Joined: Wed Feb 13, 2013 1:48 am
Location: Tasmania, Australia

Re: 6x6x6 Clod build

Post by Sixtys Guy » Sun Aug 24, 2014 10:19 pm

That looks great!

rknaub
Approved Member
Posts: 140
Joined: Thu Jul 17, 2014 2:51 am

Re: 6x6x6 Clod build

Post by rknaub » Sun Aug 24, 2014 11:51 pm

Here's my ideas for an actuator..

Hack a servo so it continuously rotates, screw in some threaded rod to the servo with some red loctite. Get some internally threaded rod and attach a ball link end, screw it over the threaded rod. Attach servo to the frame, and ball link to the flatbed. When the servo rotates, it will screw and unscrew the internally threaded rod, to any length I want.

Now to find out what size thread the solar 772 servo is, and find the appropriate rods!
My flagship 6x6x6 build: viewtopic.php?f=50&t=29626
Peterbuilt crawler build "HellFire": viewtopic.php?f=46&t=29618
Basher build: viewtopic.php?f=46&t=29750

rknaub
Approved Member
Posts: 140
Joined: Thu Jul 17, 2014 2:51 am

Re: 6x6x6 Clod build

Post by rknaub » Mon Sep 22, 2014 11:57 pm

Ok so the servo idea is not gonna work... Impossible to find internally threaded rod, and m3 all thread is just too weak. So, I found an old night crawler transmission, attached an 8-32 all thread, and gonna tap some aluminum stock, put it on a hinge and attach it to the bed.

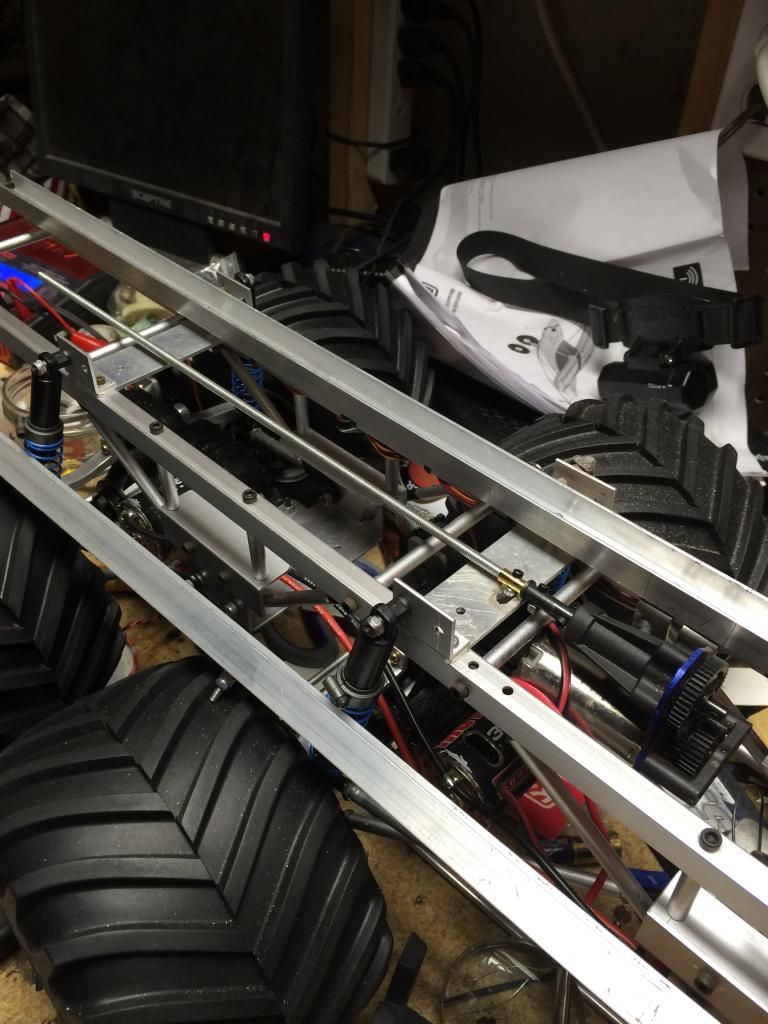

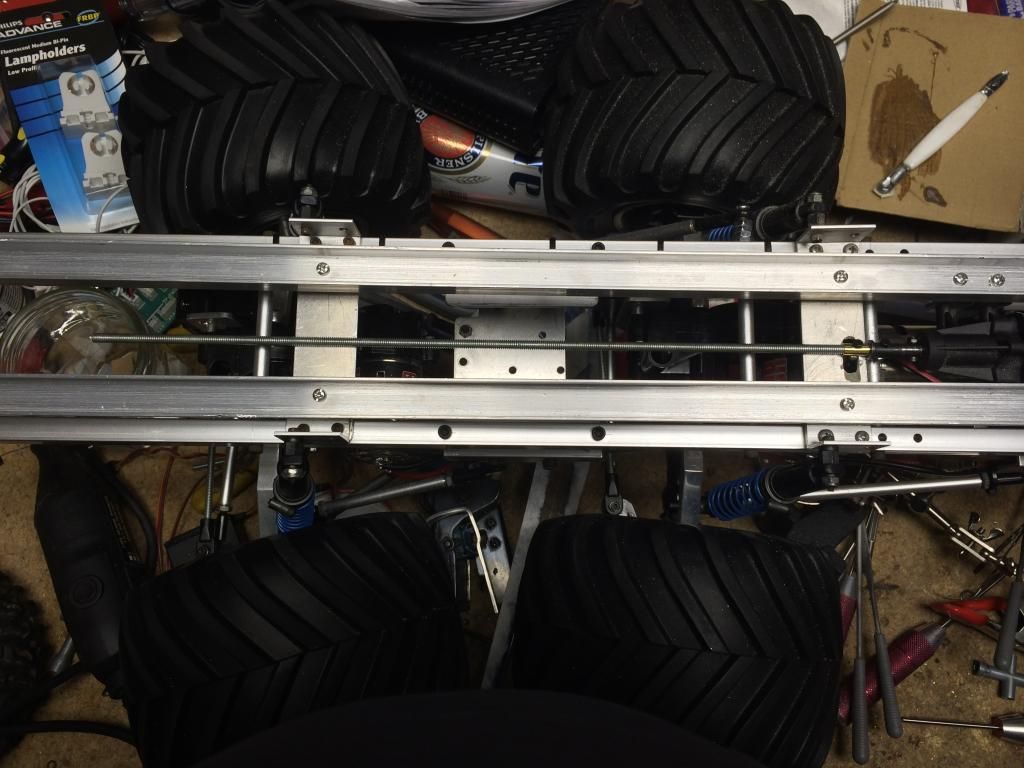

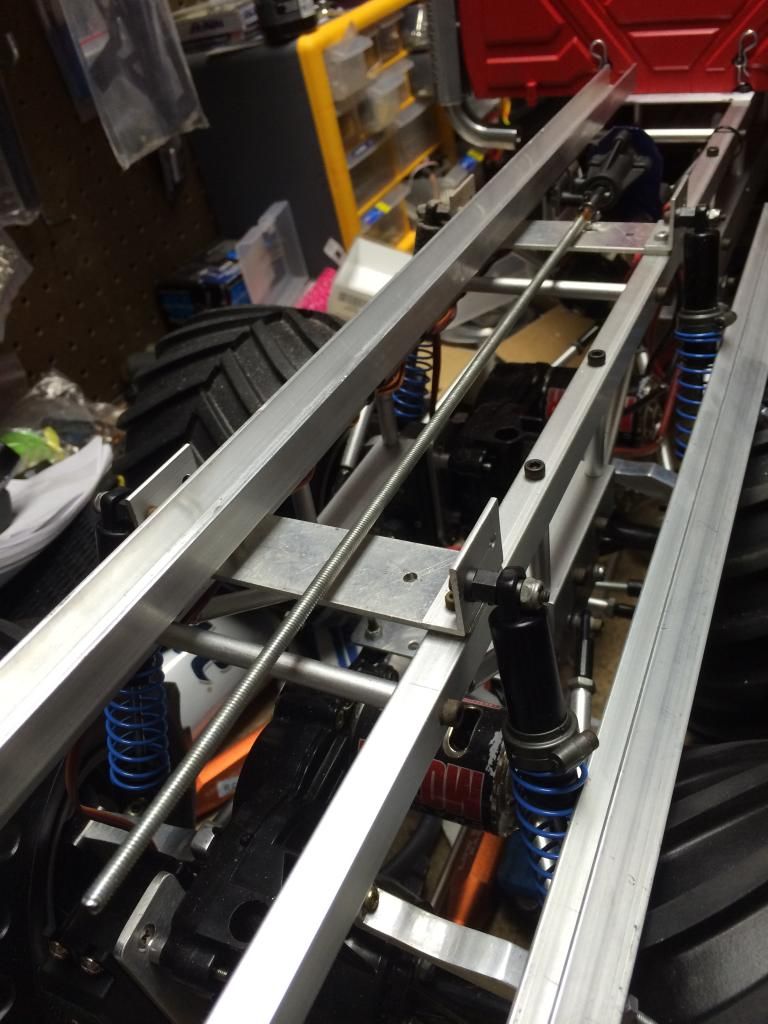

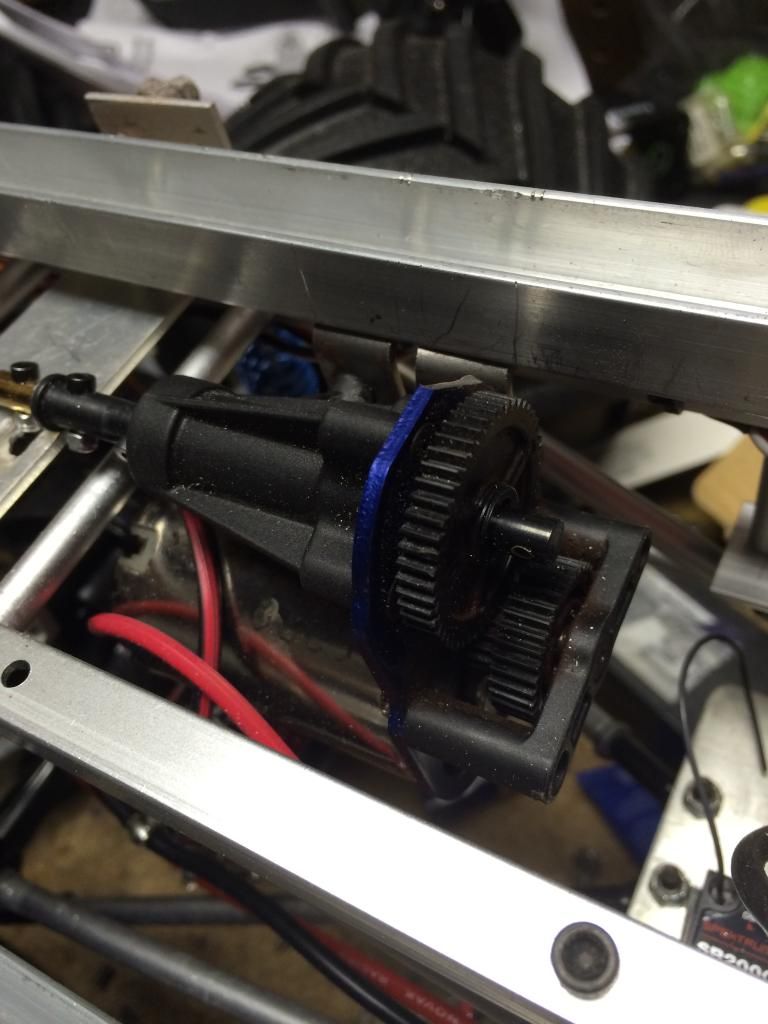

Haven't had time or money to work on this lately, but got some wrenching in today. Tranny and motor mounted up... All that's left really is to drill and tap the aluminum to thread onto the 8-32 rod, and attach it to the bed. Here's some pics.

Last edited by rknaub on Tue Sep 23, 2014 4:31 am, edited 1 time in total.
My flagship 6x6x6 build: viewtopic.php?f=50&t=29626
Peterbuilt crawler build "HellFire": viewtopic.php?f=46&t=29618
Basher build: viewtopic.php?f=46&t=29750

User avatar
SFC K
Administrator
Posts: 7412
Joined: Wed Sep 30, 2009 1:42 am
Location: Oakdale, MN

Re: 6x6x6 Clod build

Post by SFC K » Tue Sep 23, 2014 12:11 am

Nice build! I like the progress on the lift bed idea. I just hope the aluminum rod is strong enough to move it with a load.


BTW, try putting card board or newspaper down when painting. You won't ruin your floor. The paint job turned out very nice though for being terrible at it. :wink:
Jeff

User avatar
charliechristmas58
Approved Member
Posts: 7037
Joined: Sun Sep 17, 2006 11:12 pm
Location: Angleton Texas

Re: 6x6x6 Clod build

Post by charliechristmas58 » Tue Sep 23, 2014 4:23 am

Use some of that elect grease that they use to put on lightblubs for cars on your rails to help it slide. and im really likeing this build. =D>
Life is not a journey to the grave with the intention of arriving safely in a pretty and well preserved body, but rather to skid in broadside, thoroughly used up, totally worn out, and loudly proclaiming to the Lord,
"Wow, What a ride!"

rknaub
Approved Member
Posts: 140
Joined: Thu Jul 17, 2014 2:51 am

Re: 6x6x6 Clod build

Post by rknaub » Fri Sep 26, 2014 3:35 am

Ok, so it is a VERY rough mockup... Still work to be done, but I'm starting to see a glimmer of light at the end of this incredibly difficult tunnel. Got some more work done today. Gonna make some adjustments over the weekend, but overall I am very satisfied with the progress!! Couple videos of the roll back in action:

[youtube]5tt4WqKwDRs[/youtube]

[youtube]Xy3Q4VBNZvw[/youtube]

Thanks for watching everyone!
Last edited by rknaub on Fri Sep 26, 2014 7:29 pm, edited 1 time in total.
My flagship 6x6x6 build: viewtopic.php?f=50&t=29626
Peterbuilt crawler build "HellFire": viewtopic.php?f=46&t=29618
Basher build: viewtopic.php?f=46&t=29750

rknaub
Approved Member
Posts: 140
Joined: Thu Jul 17, 2014 2:51 am

Re: 6x6x6 Clod build

Post by rknaub » Fri Sep 26, 2014 7:29 pm

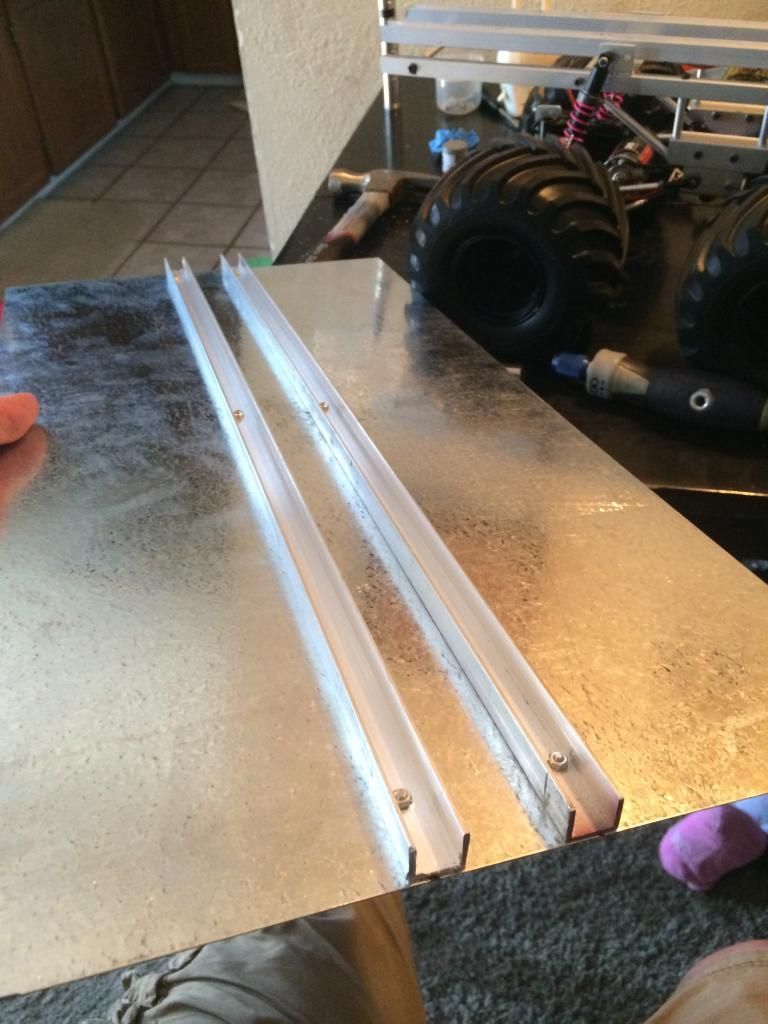

Ok now that I got most of it worked out, time to start making a good looking deck for it. Here's of a video of it with the deck on it. Works good, have yet to test it with my wraith on it. Just happy to get this part outta the way. It took a lot of time figuring out how to do this, and though it isn't perfect - I'm very satisfied with it. Enjoy.

[youtube]mmLokl8I3LE[/youtube]
My flagship 6x6x6 build: viewtopic.php?f=50&t=29626
Peterbuilt crawler build "HellFire": viewtopic.php?f=46&t=29618
Basher build: viewtopic.php?f=46&t=29750

User avatar
andymac0035
Administrator
Posts: 11220
Joined: Mon Mar 29, 2010 9:54 pm
Location: Canaan, NH

Re: 6x6x6 Clod build

Post by andymac0035 » Fri Sep 26, 2014 9:51 pm

I fixed your links. ;)

That is awesome! :thumbsup:
I don't think I've seen that done before either.

User avatar
rex21
Approved Member
Posts: 344
Joined: Wed Dec 05, 2012 1:42 pm
Location: Star Prairie, WI

Re: 6x6x6 Clod build

Post by rex21 » Fri Sep 26, 2014 10:02 pm

Nice work! Looks like it will work great.

rknaub
Approved Member
Posts: 140
Joined: Thu Jul 17, 2014 2:51 am

Re: 6x6x6 Clod build

Post by rknaub » Fri Sep 26, 2014 10:52 pm

andymac0035 wrote:I fixed your links. ;)

That is awesome! :thumbsup:
I don't think I've seen that done before either.

Thanks!!
My flagship 6x6x6 build: viewtopic.php?f=50&t=29626
Peterbuilt crawler build "HellFire": viewtopic.php?f=46&t=29618
Basher build: viewtopic.php?f=46&t=29750
